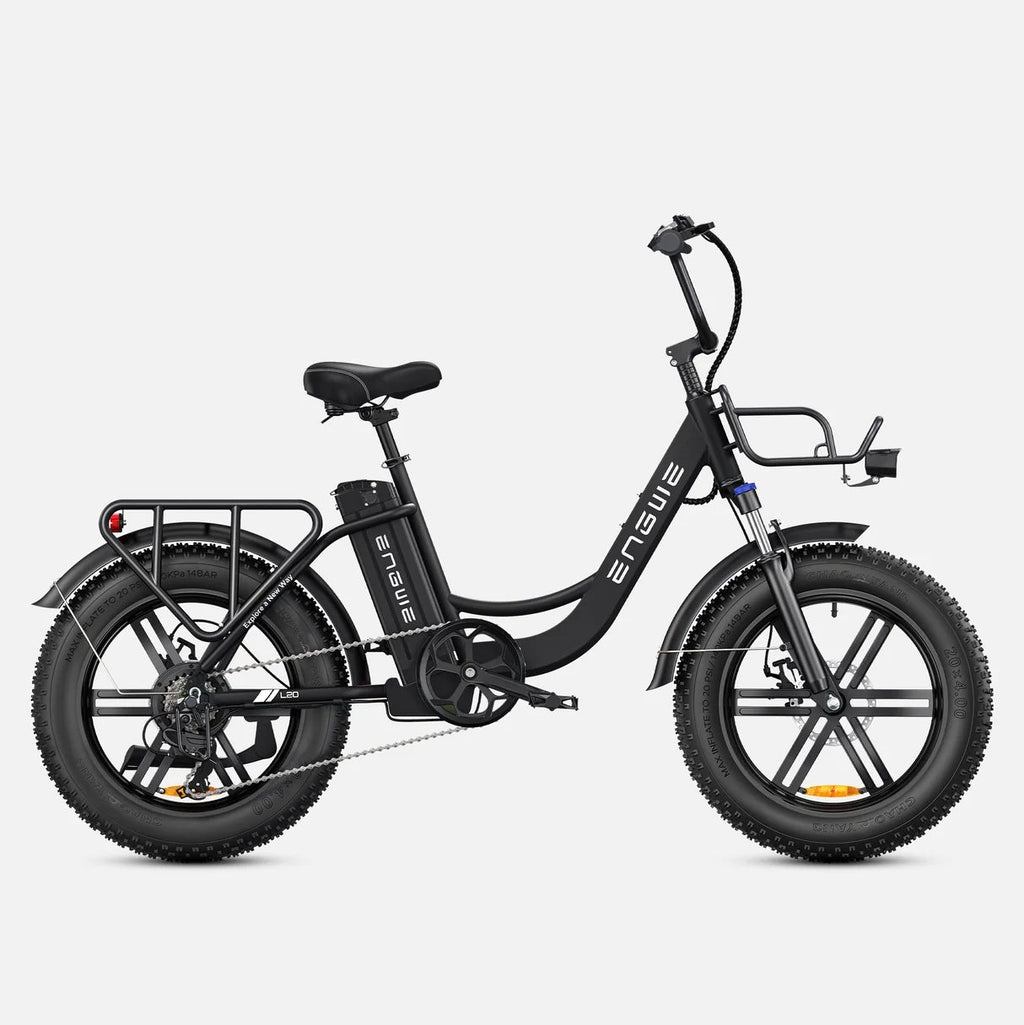

Engwe L20 Boost Electric Bike

Description

The ENGWE L20 Boost is a versatile step-through electric fat bike designed for both urban commuting and off-road adventures. Its low-step frame ensures easy mounting and dismounting, making it accessible to riders of various heights.
Key Features
Motor & Battery: Equipped with a 250W brushless motor delivering 75 Nm of torque, paired with a 48V 13Ah lithium-ion battery, the L20 Boost delivers a top speed of 25 km/h and a range of up to 126 km on a single charge (actual distance varies with rider weight and road conditions).
Tires & Suspension: The 20 x 4.0-inch fat tyres provide excellent traction and stability across various terrains, while the front suspension fork absorbs shocks for a smoother ride.
Braking System: Features 160mm mechanical disc brakes on both front and rear wheels, ensuring reliable stopping power in diverse conditions.
Transmission: Shimano 7-speed gear system for versatile riding across different terrains and inclines.
Design & Build: Constructed with a durable 6061 aluminium alloy frame, supporting a maximum load of 120 kg and weighing 34 kg.
Additional Features: LCD display for real-time riding data, integrated LED lights for enhanced visibility, and a rear rack for carrying cargo.
📏 Specifications
Frame Material: 6061 Aluminium Alloy
Motor: 250W Brushless Motor
Max Torque: 75 Nm
Tires: 20 x 4.0″ Fat Tyres
Battery: 48V 13Ah Lithium-Ion
Max Speed: 25 km/h (No Throttle)
Max Mileage: 126 km (actual distance varies with rider weight and road conditions)
Charging Time: Approximately 6.5 hours
Maximum Climbing Degree: 10°
Brakes: 160mm Front & Rear Mechanical Disc Brakes
Transmission: Shimano 7-Speed
Display: LCD Display
Bike Weight: 34 kg (74.8 lbs)
Gross Weight: 41.5 kg (91.13 lbs)
Payload Capacity: 120 kg (264 lbs)
📦 Size & Packaging
Rider Height: 5’0″ – 6’0″ (approx. 152–183 cm)
Package Dimensions (L×W×H): 148.5 × 32 × 78 cm
👥 Geometry (L20 Boost)
A – Handlebar Height: 115 cm
B – Total Length: 174.3 cm
C – Reach: 37 cm
D – Standover Height: 43.3 cm
E – Wheelbase: 115.7 cm
F – Minimum Saddle Height: 82 cm
G – Maximum Saddle Height: 94 cm
Please note: There may be a difference of 0–5 cm between measured and actual data.
⚡ How the Boost Button Works
The boost button acts as an enhanced level of pedal assist, providing a temporary power boost only when the rider is pedalling.
It helps with quick acceleration and hill climbing while maintaining legal e-bike status — it requires pedalling and does not function as a continuous throttle.
This distinction ensures safety and compliance with regulations, differentiating the L20 Boost from motorised vehicles.
The Boost Button provides a power surge for up to one minute. After each use, it must be pressed again for continued activation — ensuring safe and controlled performance on every ride.
Ideal For
Riders seeking a comfortable and reliable e-bike for daily commutes, leisure rides, or light off-road excursions will find the ENGWE L20 Boost to be a fitting choice. Its combination of range, power, and user-friendly features caters to both novice and experienced cyclists.
