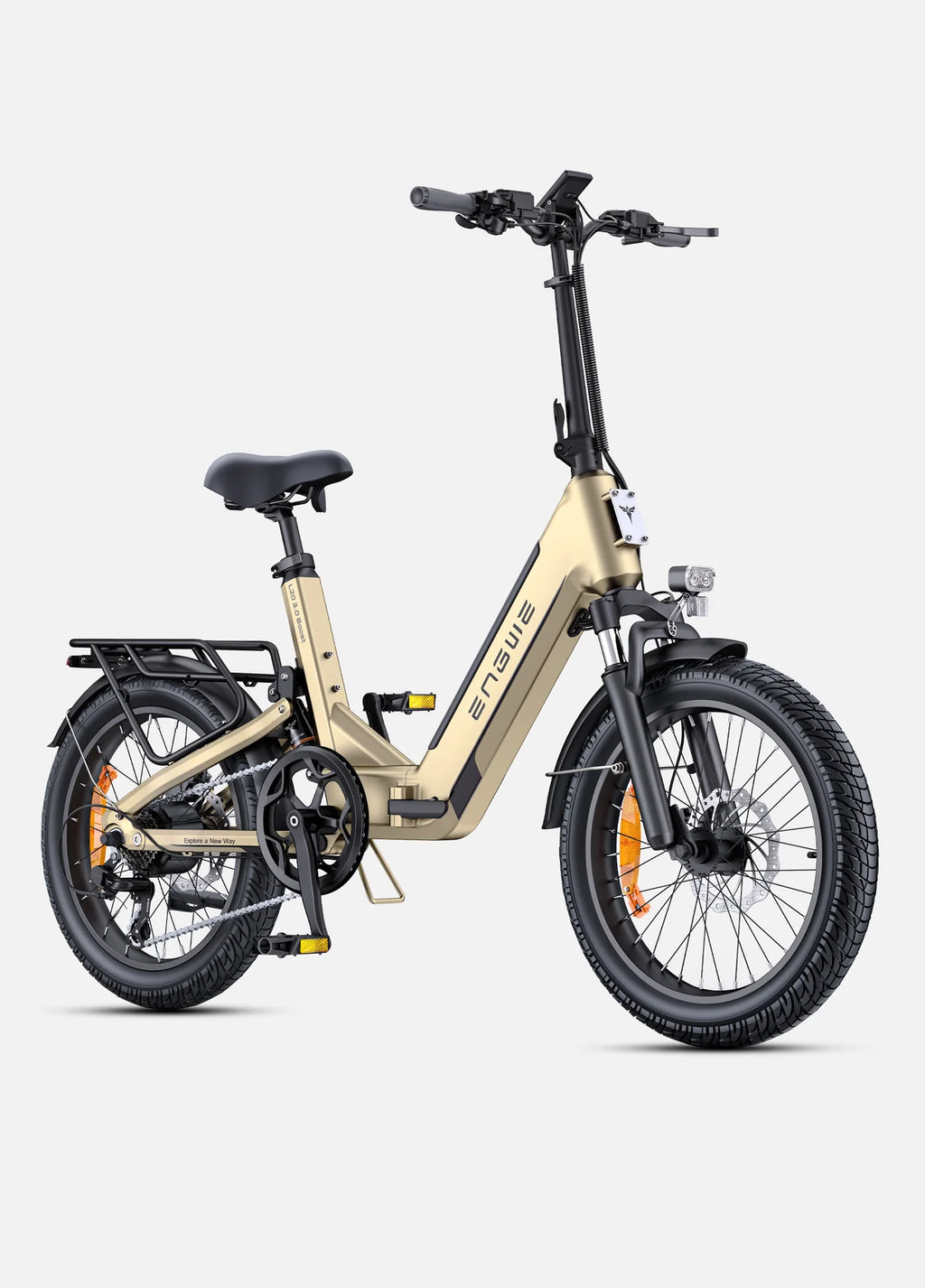

Engwe L20 3.0 Pro Electric Bike

Description

The ENGWE L20 3.0 Pro is a premium, foldable electric bike designed for urban commuting and light off-road adventures. With its powerful mid-drive motor, long-range battery, full suspension system, and smart connectivity, it offers a comfortable, efficient, and connected riding experience.
Key Features
Motor & Power: Mivice X700 Mid-Drive motor (48V) delivering 100 Nm of torque with torque sensor assist for a natural, responsive ride.
Battery & Range: 48V 15Ah (720Wh) Samsung 21700 lithium-ion battery with BMS protection. Lab-tested range of 160 km; real-world range of 140 km (PAS 1), 110 km (PAS 3), or 96 km (PAS 5).
Fast Charging: 54.6V 8A charger for rapid top-ups and minimal downtime.
Full Suspension: Hydraulic adjustable lockout front fork and 30mm rear travel for a smooth, comfortable ride across all surfaces.
Tires: 20″ × 3.0″ Urban Hybrid Tyres with a 3mm anti-puncture layer for enhanced grip and puncture resistance.
Braking System: Hydraulic dual-piston disc brakes with 180mm rotors front and rear for confident, reliable stopping power.
Smart Connectivity: ENGWE IOT Module with GPS, 4G & Bluetooth. Control and monitor your ride via the ENGWE App.
Display & Lighting: 3.5″ LCD colour display (mid-position). 30 Lux front light with integrated e-horn. Auto-brightening rear light when braking or shaking.
Foldable Design: Compact step-through frame folds quickly for easy storage and transport.
📏 Specifications
General
Model: L20 3.0 Pro
Bike Weight: 32.8 kg (72.3 lbs)
Gross Weight: Approx. 42 kg (92.6 lbs)
Max Load Capacity: 150 kg (330 lbs)
Rider Height: 155 cm – 190 cm (5’1″ – 6’3″)
Pedal Assist: 5 Levels
Lab Tested Range: 160 km (Fully Charged)
Real-World Range: 140 km (PAS 1) / 110 km (PAS 3) / 96 km (PAS 5)
Waterproof Rating: IPX7 (Wiring) / IPX6 (Display & Lights) / IPX5 (Motor & Controller) / IPX4 (Battery Box)
Certification: CE (EN15194)
Terrain: Tarmac Roads, Gravel-Paved Paths, Sandy Beaches & Grass, Country Roads & Paved Trails
Frame & Fork
Frame Material: 6061 Aluminium Alloy, Internal Battery, Step-Through Design
Frame Style: Compact, Full Suspension
Fork: Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminium
Rear Suspension Travel: 30mm
Wheels & Tyres
Tires: 20″ × 3.0″ Urban Hybrid Tyres
Puncture Protection: 3mm Anti-Puncture Layer
Wheels: 20-inch, Double-Wall Aluminium, 36-Hole, 12-Gauge Spokes, Black
E-Bike System
Motor: Mivice X700 Mid-Drive, 48V
Max Torque: 100 Nm
Assist System: Torque Sensor
IOT: ENGWE IOT Module with GPS, 4G & Bluetooth
Battery: 48V 15Ah (720Wh), Samsung 21700 Cells with BMS Protection
Charger: 54.6V 8A Output
Display: 3.5″ LCD Colour Display, ENGWE-Designed, Mid-Position
ENGWE App: App Control Available
Front Light: 30 Lux with Integrated E-Horn
Rear Light: Auto-brightens when braking or shaking
Brakes
Brake Type: Hydraulic, Dual-Piston
Disc Rotor: 180mm Front & Rear
Drivetrain
Chain: KMC E8S Anti-Rust, 112 Links
Chainring: 48T
Crank: 170mm
Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed
Shifter: Shimano SL-M315-7R
Cassette: 7-Speed, 14T–28T
Pedals: Boron Steel, Non-Foldable
Cockpit
Handlebars: 680mm Width
Stem: Foldable
Saddle: ENGWE Soft Saddle
Seat Post: 10-Level Adjustable
Seat Clamp: Quick-Release
👥 Geometry
A – Handlebar Height: 110.2 cm
B – Total Length: 172.0 cm
C – Reach: 51.2 cm
D – Standover Height: 38 cm
E – Wheelbase: 116.5 cm
F – Min Saddle Height: 82.0 cm
G – Max Handlebar Height: 102.0 cm
📦 Size & Packaging
Rider Height: 155 cm – 190 cm (5’1″ – 6’3″)
Max Load Capacity: 150 kg (330 lbs)
Package Dimensions (L×W×H): 144 × 27 × 64 cm
Folded Size: 102 × 53 × 78 cm
A – Height: 78 cm
B – Length: 102 cm
C – Width: 53 cm
Ideal For
The ENGWE L20 3.0 Pro is perfect for riders seeking a powerful, smart, and versatile e-bike that handles daily commutes and light off-road trails with ease. Its combination of range, torque, full suspension, and connected features caters to a wide range of cycling enthusiasts.
