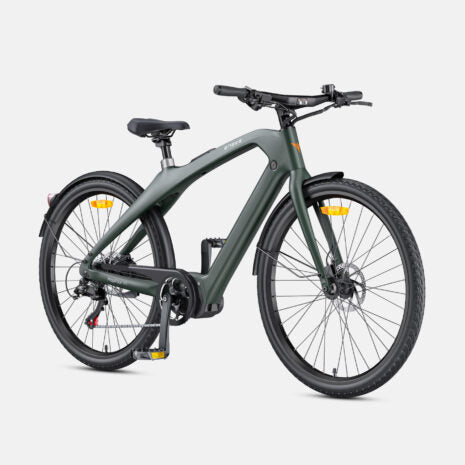

Engwe MAPFOUR N1 Pro Electric Bike

Description

The ENGWE MapFour N1 Pro is a premium, ultra-lightweight carbon fiber electric bike designed for urban commuters seeking serious performance, portability, and efficiency. With a powerful mid-drive motor, hydraulic disc brakes, and a rapid-charge battery, it delivers a confident and capable riding experience every day.
Key Features
Ultra-Lightweight Frame: Crafted from high-quality carbon fiber, the N1 Pro weighs just 19 kg — lightweight, stiff, and built for the demands of daily urban riding.
Powerful Mid-Drive Motor: 250W Ananda brushless mid-drive motor delivering 80 Nm of torque with torque sensor assist for smooth, natural, and responsive pedal assistance up to 25 km/h.
Long-Range Battery: 36V 10Ah removable lithium-ion battery offering up to 100 km range (PAS 1 level) on a single charge, with rapid recharging in just 1.5–2 hours.
Hydraulic Disc Brakes: 160mm hydraulic disc brakes front and rear for confident, precise stopping power in all conditions.
Lighting: Front light and solar tail light for enhanced visibility and safety day and night.
Transmission: Shimano 7-speed gear system for versatile riding across different terrains and inclines.
Display: LED colour display providing real-time information on speed, battery level, and riding mode.
📏 Specifications
Frame Material: Carbon Fiber
Motor: 250W Ananda Brushless Mid-Drive Motor
Sensor: Torque Sensor
Max Torque: 80 Nm
Battery: 36V 10Ah Removable Lithium-ion
Max Speed: 25 km/h
Mileage: 100 km (PAS 1 level)
Charging Time: Approximately 1.5–2 hours (varies with battery usage)
Maximum Climbing Degree: 10°
Tires: 700 × 42C Spoke Tyres
Transmission: Shimano 7-Speed
Brakes: 160mm Front & Rear Hydraulic Disc Brakes
Display: LED Colour Display
Lights: Front Light & Solar Tail Light
Bike Weight: 19 kg (41.88 lbs)
Gross Weight: 28.6 kg (63.05 lbs)
Payload Capacity: 120 kg (264.5 lbs)
📦 Size & Packaging
Rider Height: 5’5″ – 6’7″ (approx. 165–200 cm)
Payload Capacity: 120 kg (264.5 lbs)
Package Dimensions (L×W×H): 152.4 × 22.5 × 73 cm
👥 Geometry — N1 Pro
A – Wheelbase: 116.8 cm
B – Total Length: 189.5 cm
C – Reach: 49.6 cm
D – Standover Height: 78.5 cm
E – Minimum Saddle Height: 87.6 cm
F – Maximum Saddle Height: 93.5 cm
G – Handlebar Height: 99.5 cm
Please note: There may be a difference of 0–5 cm between measured and actual data.
Ideal For
The ENGWE MapFour N1 Pro is perfect for urban commuters and performance-focused riders seeking a lightweight, powerful, and efficient electric bike. Its combination of carbon fiber construction, mid-drive torque, hydraulic braking, and rapid charging makes it one of the most capable commuter e-bikes available.
