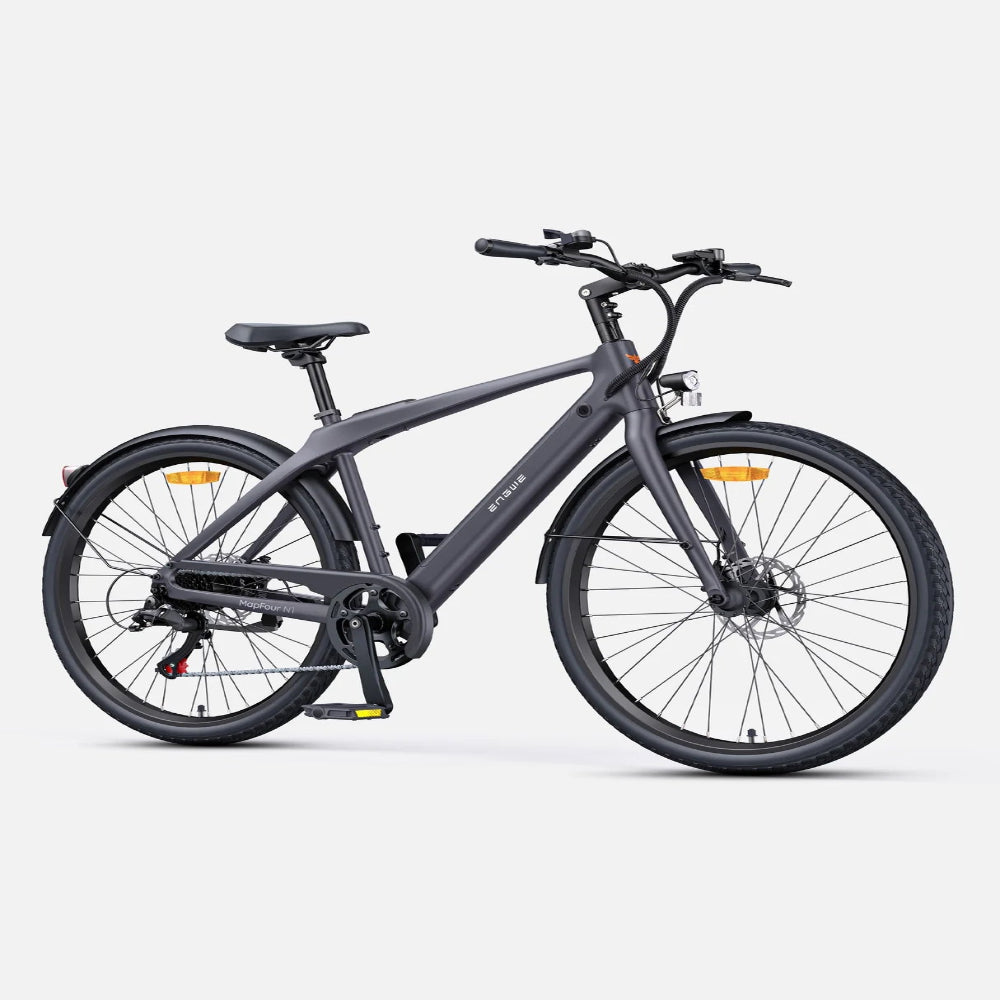

Engwe MAPFOUR N1 AIR Electric Bike

Description

The ENGWE MapFour N1 Air is a premium, ultra-lightweight carbon fiber electric bike designed for urban commuters seeking performance, portability, and smart features. With its sleek design and advanced technology, it offers a comfortable and efficient riding experience.
Key Features
Ultra-Lightweight Frame: Crafted from high-quality carbon fiber with an aluminium fork, the N1 Air weighs just 15.6 kg — exceptionally easy to handle and transport.
Powerful Motor: MIVICE M070 rear hub motor delivering 40 Nm of torque with torque sensor assist for smooth, natural pedal assistance up to 25 km/h.
Long-Range Battery: 36V 10Ah Samsung removable lithium-ion battery offering up to 100 km range (PAS 1 level) on a single charge.
Lighting: Front light and solar tail light for enhanced visibility and safety in all conditions.
Braking System: 160mm mechanical disc brakes front and rear for reliable stopping power.
Transmission: Shimano 7-speed gear system for versatile riding across different terrains.
Display: LCD colour display providing real-time information on speed, battery level, and riding mode.
📏 Specifications
Frame Material: Carbon Fiber
Fork: Aluminium
Motor: MIVICE M070 Rear Hub Motor
Sensor: Torque Sensor
Max Torque: 40 Nm
Battery: 36V 10Ah Samsung Removable Lithium-ion
Max Speed: 25 km/h
Mileage: 100 km (PAS 1 level)
Charging Time: Approximately 5–8 hours (varies with battery usage)
Maximum Climbing Degree: 10°
Tires: 700 × 38C Spoke Tyres
Transmission: Shimano 7-Speed
Brakes: 160mm Front & Rear Mechanical Disc Brakes
Display: LCD Colour Display
Lights: Front Light & Solar Tail Light
Bike Weight: 15.6 kg (34.39 lbs)
Gross Weight: 25.4 kg (55.99 lbs)
Payload Capacity: 120 kg (264.5 lbs)
📦 Size & Packaging
Rider Height: 5’5″ – 6’7″ (approx. 165–200 cm)
Payload Capacity: 120 kg (264.5 lbs)
Package Dimensions (L×W×H): 148.4 × 22.5 × 73 cm
👥 Geometry — N1 Air
A – Wheelbase: 110.5 cm
B – Total Length: 181 cm
C – Reach: 44 cm
D – Standover Height: 75.5 cm
E – Minimum Saddle Height: 82.5 cm
F – Maximum Saddle Height: 95 cm
G – Min Handlebar Height: 105 cm
H – Max Handlebar Height: 112 cm
👥 Geometry — N1 Air ST
A – Handlebar Height: 109.1 cm
B – Total Length: 179.7 cm
C – Reach: 42 cm
D – Standover Height: 75.8 cm
E – Wheelbase: 84.5 cm
F – Min Saddle Height: 100 cm
G – Min Handlebar Height: 105 cm
H – Max Handlebar Height: 112 cm
Please note: There may be a difference of 0–5 cm between measured and actual data.
Ideal For
The ENGWE MapFour N1 Air is perfect for urban commuters and leisure riders seeking a lightweight, efficient, and capable electric bike. Its combination of carbon fiber construction, torque sensor assist, and long-range battery caters to those who value performance and convenience in their daily rides.
